STORAGE & TERMINALS
Projects:
- Simonette LACT & Storage Facility
- Simonette Liquids Offload Project
- Rail & Truck Loading Systems
- Cavern Storage Facilities
20,000BBL Crude Storage Tanks
20,000BBL Crude Storage Tanks
20,000BBL Crude Storage Tanks

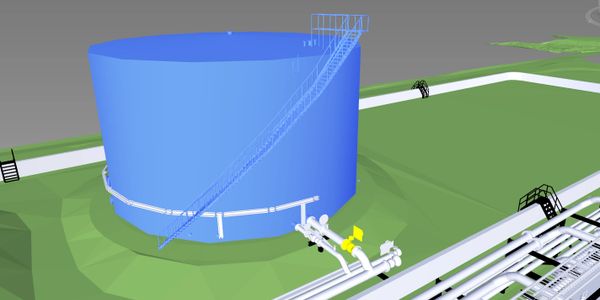

Floating roof, atmospheric oil tank. 19 meter diameter tank standing 11 meters high. Fully engineered in-house from scoping/sizing, IFC P&ID's, vendor squad checks and approvals, foundation design, berm design, piping design, E&I design, construction sequencing and support.
400m³ C3+ Storage Bullets
20,000BBL Crude Storage Tanks
20,000BBL Crude Storage Tanks

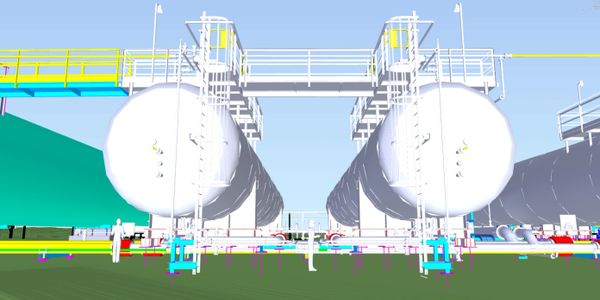

4 meter inside diameter, 31 meters seam to seam. Design pressure at 1,724 kPag. Fully engineered in-house from scoping/sizing, IFC P&ID's, vendor squad checks and approvals, foundation design, platform design, piping design, E&I design, construction sequencing and support.
18m³ Flare K.O. Drums
20,000BBL C5+ Storage Tanks
20,000BBL C5+ Storage Tanks
Buried vessel. 1.8 meter diameter, 6.1 meters seam to seam. Design Pressure at 1,765 kPag. Fully engineered in-house from scoping/sizing, IFC P&ID's, vendor squad checks and approvals, foundation design, concrete vault design, piping design, E&I design, construction sequencing and support.
20,000BBL C5+ Storage Tanks
20,000BBL C5+ Storage Tanks
20,000BBL C5+ Storage Tanks
Floating roof, atmospheric condensate tank. 19 meter diameter tank standing 11 meters high. Fully engineered in-house from scoping/sizing, IFC P&ID's, vendor squad checks and approvals, foundation design, berm design, piping design, E&I design, construction sequencing and support.
